✔️ Flexible charging options with 3.5kW and 7kW outputs accommodate a variety of charging needs
✔️ Advanced safety features and IP65 rating guarantee reliable operation in any environment
✔️ User-friendly with Plug & Charge simplicity, an LCD display, and customizable settings for a tailored charging experience
✔️ Equipped with durable, flexible TPU cables for easy handling and long-lasting performance
✔️ Broad compatibility, suitable for the majority of electric vehicles on the market
| Specification | Model | M2F Series |
| Connector and Electrical | Rated Voltage AC± 10% | 220V |

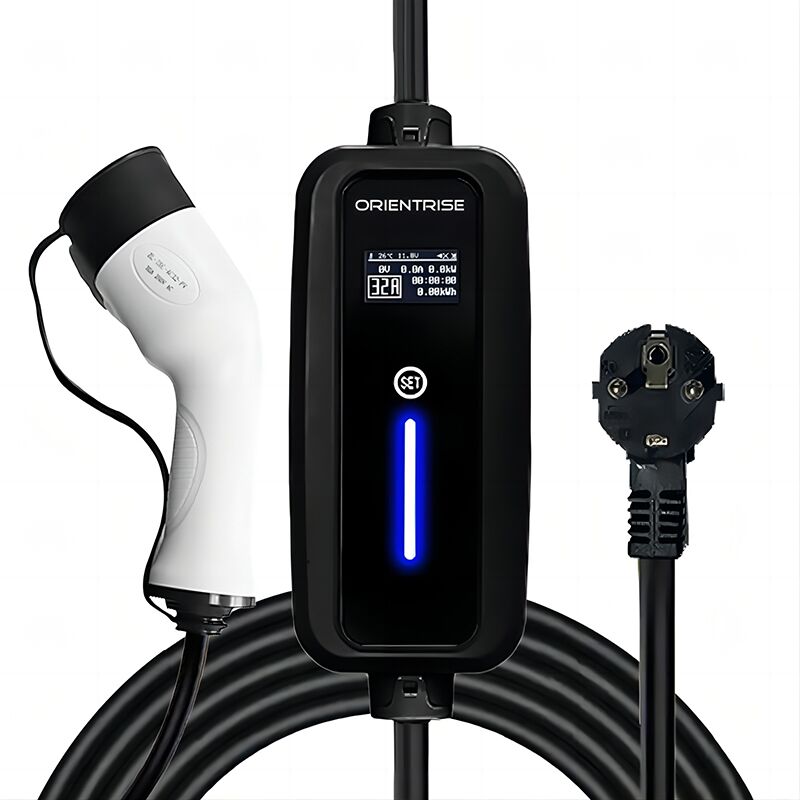

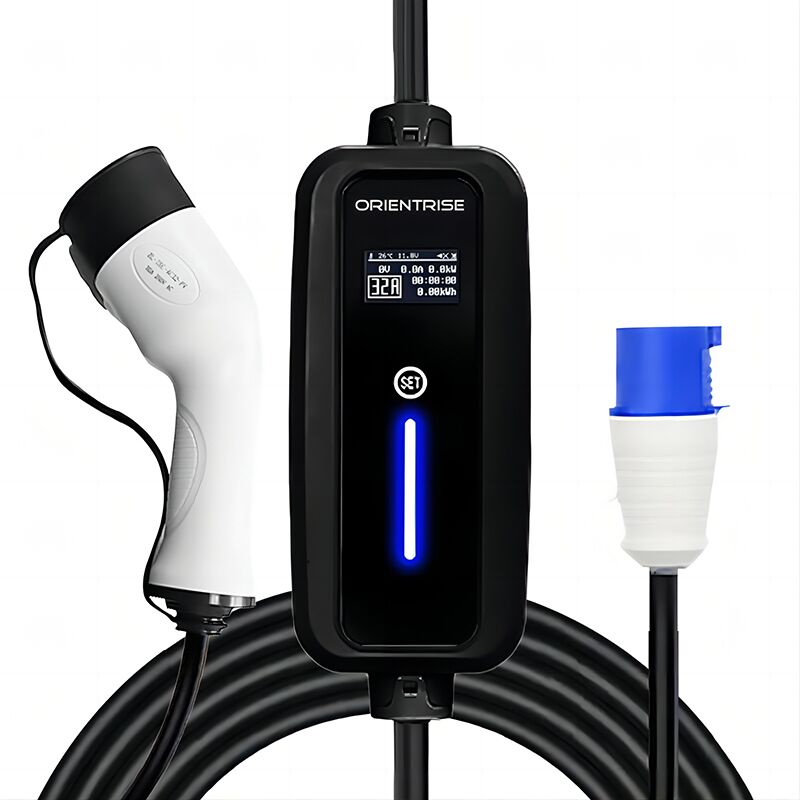

| Terminal Connection | Schuko / CEE32A | |
| AC Power Output Rating | 3.5kW / 7kW | |
| AC Power Output Current | 16A / 32A Single Phase | |
| Power Wiring | 3 Wire – L1, PE, N | |
| Charging Cable Length | 5m | |
| Connector Type | GB/T | |
| Performance and Safety | Plug-Out Detection | Power terminated per GB/T specifications |
| Ingress Protection | IP65 | |
| Electrical Protection | Leakage protection / Over-voltage protection / Under-Voltage protection / Over load protection / Ground protection / Over Temp Protection | |
| RCD type | Type A / Type B DC 6mA Optional | |
| Cable Material | TPU | |
| Operating Temperature | -25°C ~ +50°C | |
| Operating Humidity | Up to 95% at 50°C (122°F) non-condensing | |
| Certifications | CE / TUV | |
| Function | Charging Method | Plug & Charge |
| LCD Display | Yes | |
| Current Adjusting | Yes | |
| Time Setting | Yes | |
| Time Delay Setting | Yes | |
| Package | External Package | Carton |
| Package Dimension | 40*40*8cm | |
| Gross Weight | 5kg |
