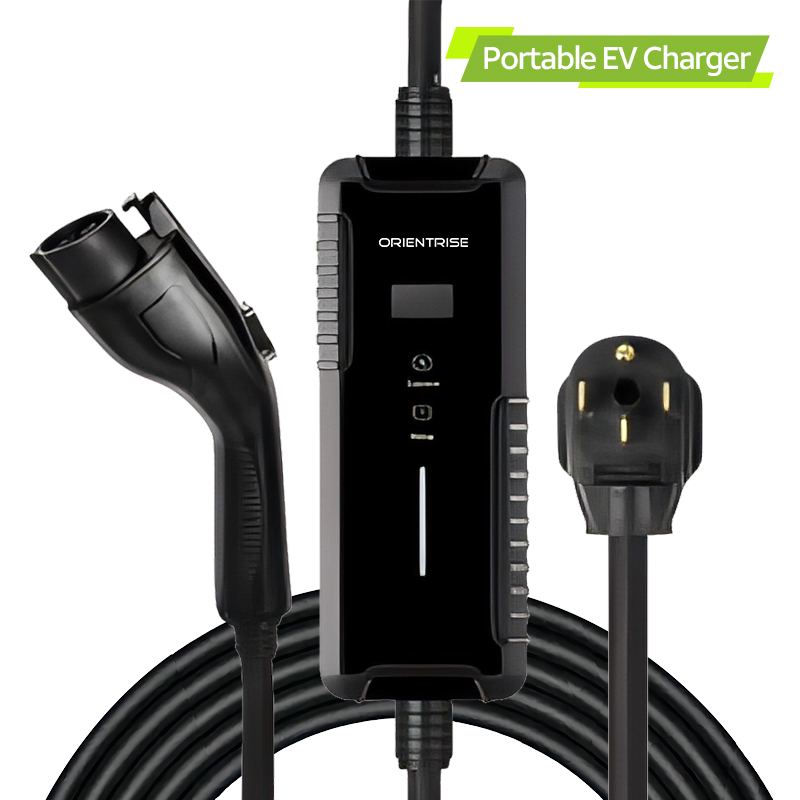

| Specification | Model | M2A Series |
| Connector and Electrical | Rated Voltage AC± 10% | 110V / 220V |
| Terminal Connection | NEMA 5-15 / NEMA 6-20 / CEE32A / NEMA14-50 / NEMA 6-50 | |
| AC Power Output Rating | 3.3kW / 7kW / 9.6kW | |
| AC Power Output Current | 16A / 32A / 40A | |
| Power Wiring | 3 Wire – L1, PE, N | |
| Charging Cable Length | 25Ft | |
| Connector Type | SAE J1772 | |
| Performance and Safety | Plug-Out Detection | Power terminated per SAE J1772 specifications |
| Ingress Protection | IP65 | |
| Electrical Protection | Over voltage protection / Under voltage protection / Over load protection / Short circuit protection / Earth leakage protection / Over-temp protection / Ground Protection | |
| RCD Type | Type A / Type B DC 6mA Optional | |
| Cable Material | TPU | |
| Operating Temperature | -25°C ~ +50°C | |
| Work Humidity | Up to 95% at 50°C (122°F) non-condensing | |
| Certifications | CE / TUV | |
| Function | Charging Method | Plug & Charge / APP Optional |
| LCD Display | Yes | |
| Communication Method | Bluetooth | |
| Current Adjusting | Yes | |
| Time Setting | Yes | |
| Time Delay Setting | Yes | |
| Package | External Package | Carton |
| Package Dimension | 41*41*12.5cm | |
| Gross Weight | 4kg |
