Our Product

EV Charging Adapter

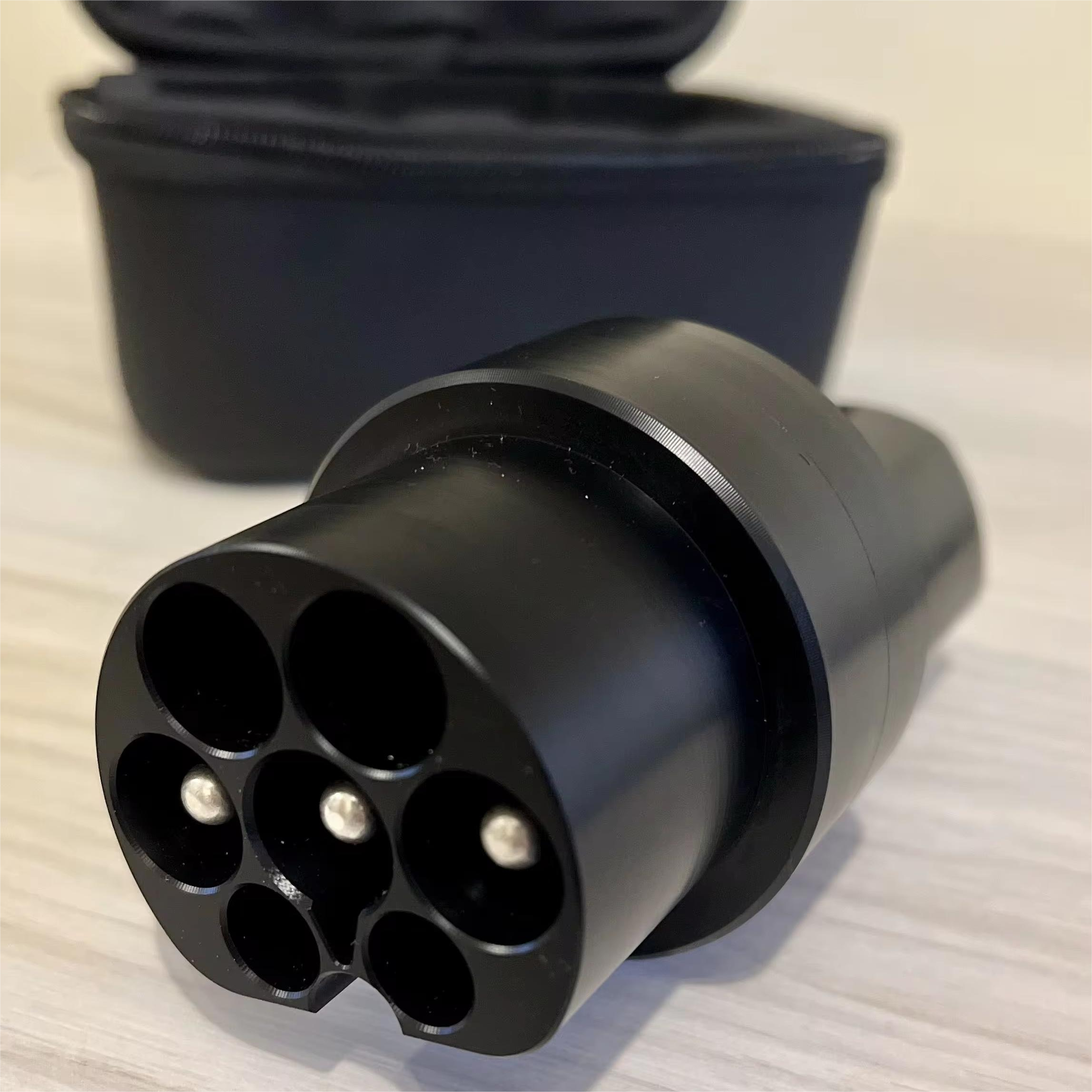

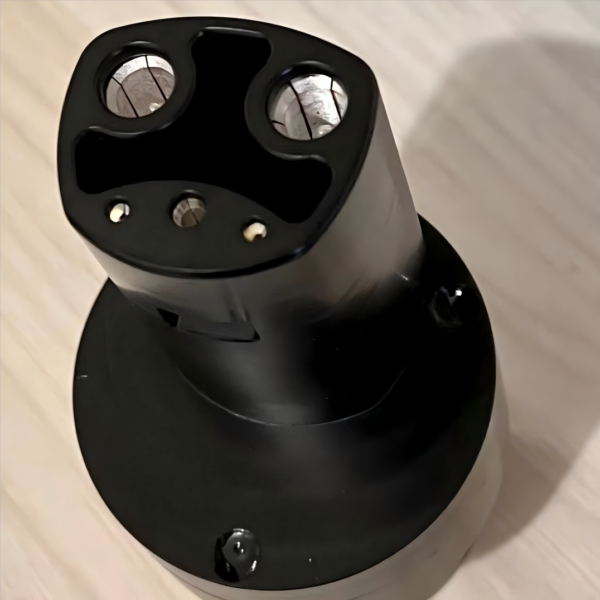

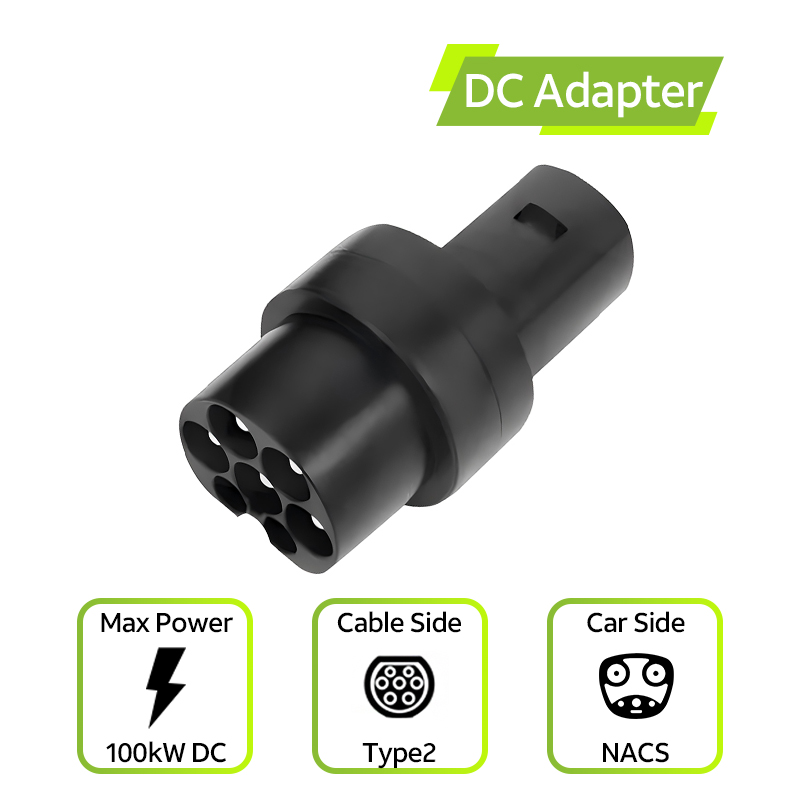

Orientrise Type2 to NACS EV Charging Adapter

  • Rated Current: 200A
  • Rated voltage: 500V DC
  • Insulation Resistance: >1000MΩ
  • Contact Resistance:5mΩ Max
  • Operating Temperature: -40~85
  • Degree of Protection: IP54
  • Gross Weight: 1kg

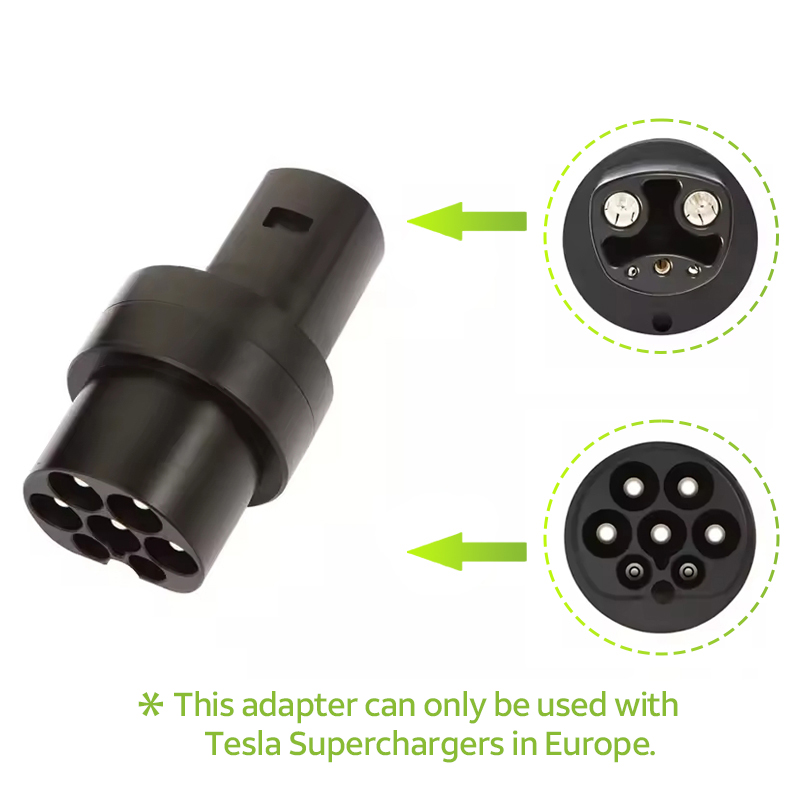

  • This adapter can only be used with Tesla Superchargers in Europe.

Parameters:

Model Type2- NACS Adapter (DC)
Rated Current 200A
Rated Power 100kW Max
Rated Voltage 500V DC
Storage Temperature -30~50
Contact Resistance 5mΩ Max
Insulation Resistance >1000MΩ
Casing Material Thermoplastic Material
Terminal Material Copper Alloy,Silver Plated
Plug Lifespan 10000 Mating Cycles
Protection Rating IP54
Flammability Rating UL94V-0
Certification CE
External Package Carton
Gross Weight 1kg
