● Output Power: 7kW / 11kW / 22kW
● Output Current: 32A(1P) / 16A(3P) / 32A(3P)
● Connector: Type2

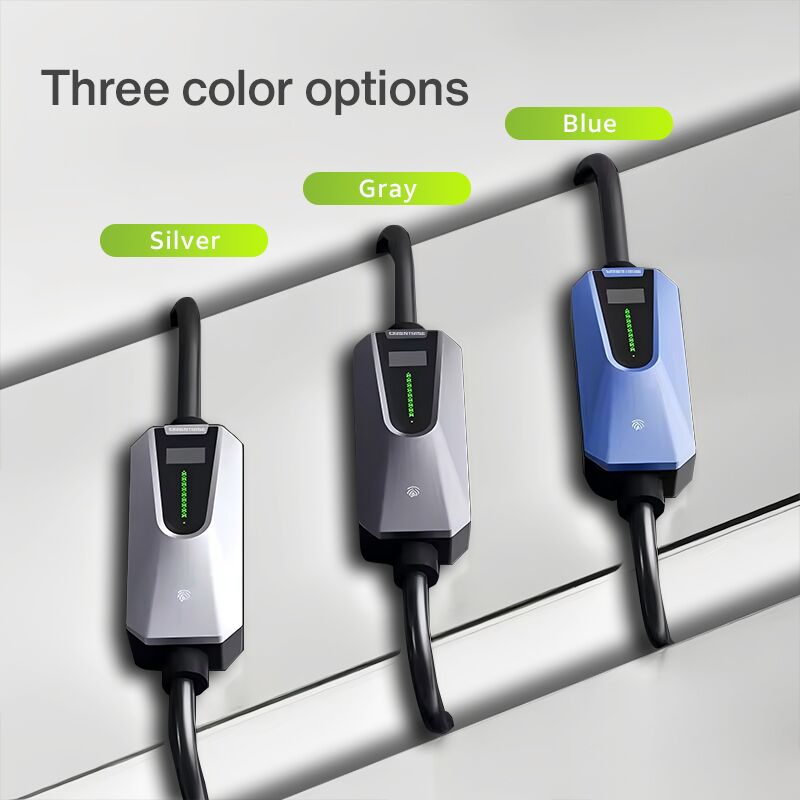

● Color: Silver / Grey / Blue
● Protection Degree: IP65
● RCD Protection: Type A / Type B DC 6mA Optional
● 1.3′ LCD Screen
● Cable Spec：TPU 5M

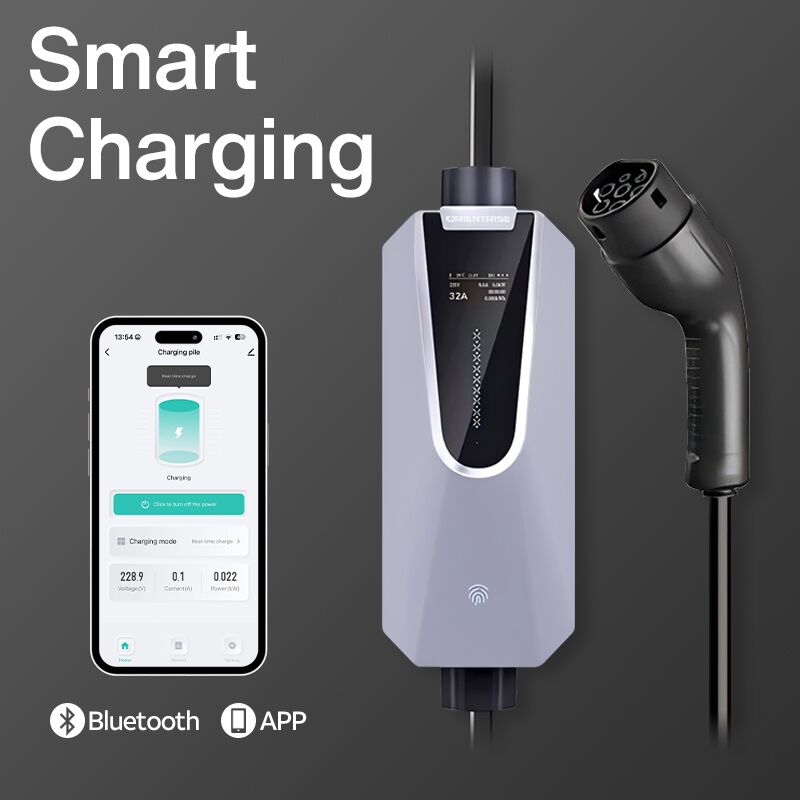

● Charging Method: Plug & Charge / APP(tuya)
● Communication Method: Wifi / Bluetooth
● Certification: CE
● Warranty: 1-Year
| Specification | Model | M2B Series |
| Connector and Electrical | Rated Voltage AC± 10% | 220V, 380V |

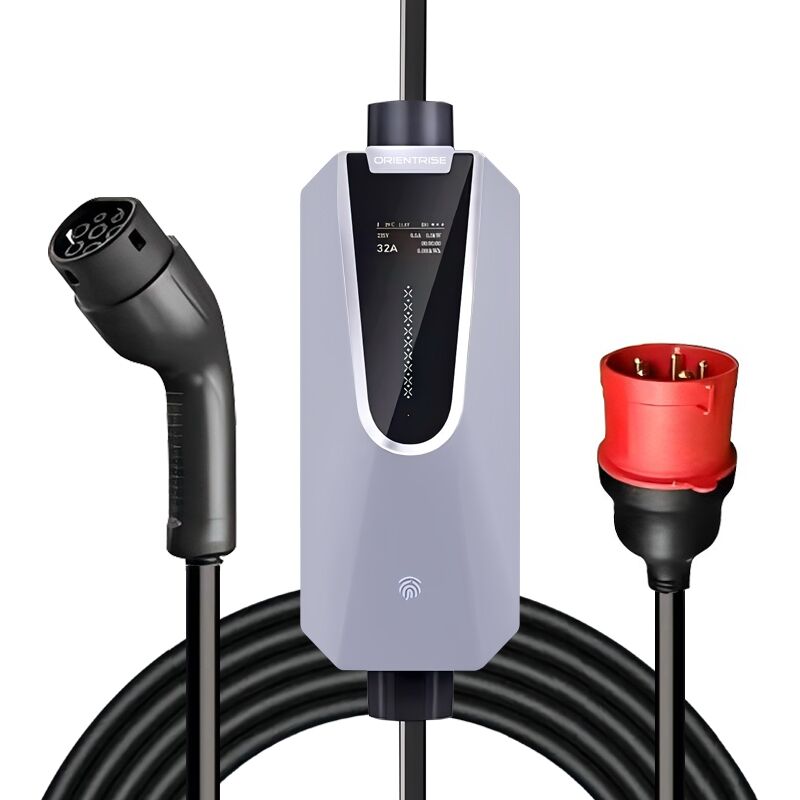

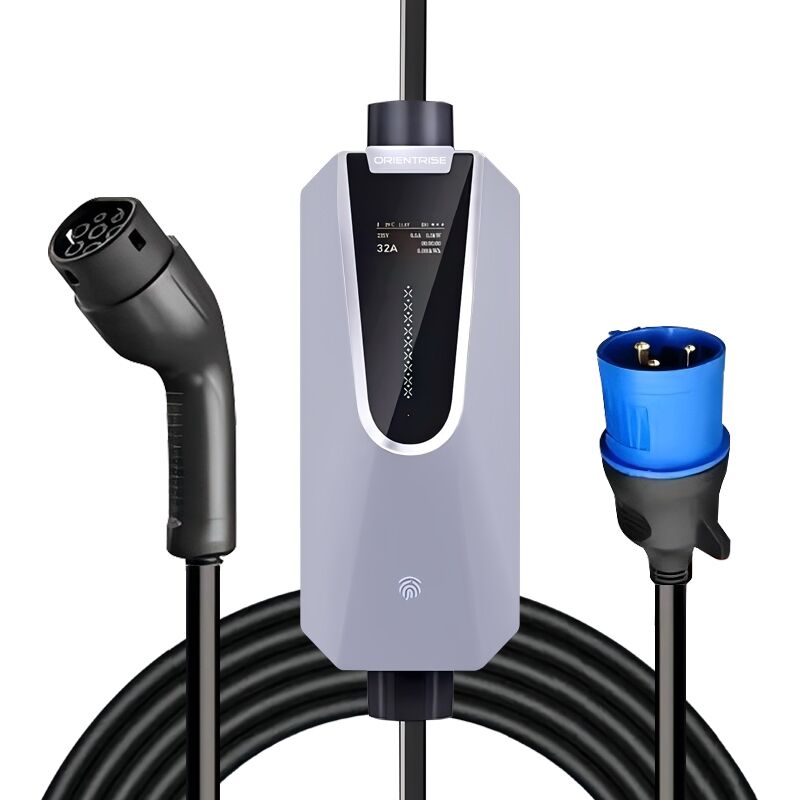

| Terminal Connection | CEE16A / CEE32A | |
| AC Power Output Rating | 7kW / 11kW / 22kW | |
| AC Power Output Current | 32A Single Phase; 16A / 32A Three Phase | |
| Power Wiring | 3 Wire – L1, PE, N | |
| Charging Cable Length | 5m | |
| Connector Type | IEC 62196-2 | |
| Performance and Safety | Plug-Out Detection | Power terminated per IEC 62196-2 specifications |
| Ingress Protection | IP65 | |
| Electrical Protection | Over voltage protection / Under voltage protection / Over load protection / Short circuit protection / Earth leakage protection / Over-temp protection / Ground Protection | |
| RCD type | Type A / Type B DC 6mA Optional | |
| Cable Material | TPU | |
| Operating Temperature | -25°C ~ +50°C | |
| Operating Humidity | Up to 95% at 50°C (122°F) non-condensing | |
| Certifications | CE | |
| Function | Charging Method | Plug & Charge / APP(tuya) |
| LCD Display | 1.3 inch LCD Screen | |
| Communication Method | Wifi / Bluetooth | |
| Current Adjusting | Yes | |
| Time Setting | Yes | |
| Time Delay Setting | Yes | |
| Package | External Package | Carton |
| Gross Weight | 5-9kg |
