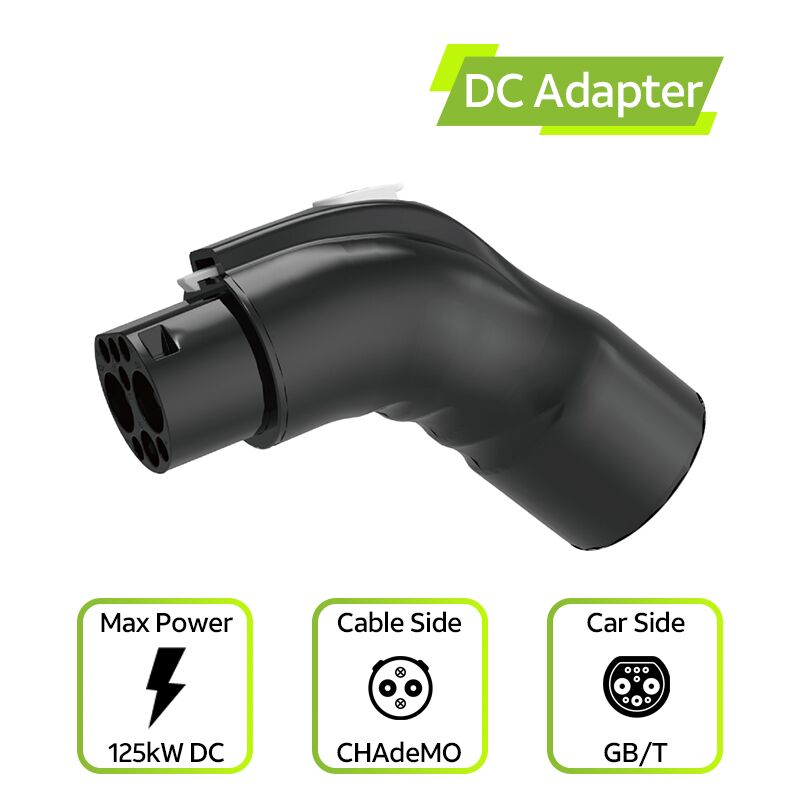

| Model | CHAdeMO-GB/T Adapter | |
| Rated Current | 125A | |
| Rated Power | 125kW Max | |
| Rated Voltage | 500V DC | |
| Operating Temperature | -40℃~85℃ | |
| Contact Resistance | 5mΩ Max | |
| Insulation Resistance | >1000MΩ | |
| Casing Material | Thermoplastic Material | |
| Terminal Material | Copper Alloy,Silver Plated | |
| Plug Lifespan | ＞10000 Mating Cycles | |
| Protection Rating | IP54 | |
| Flammability Rating | UL94V-0 | |
| Certification | CE | |
| External Package | Carton | |
| Gross Weight | 3kg | |
