Our Product

EV Discharging Cable

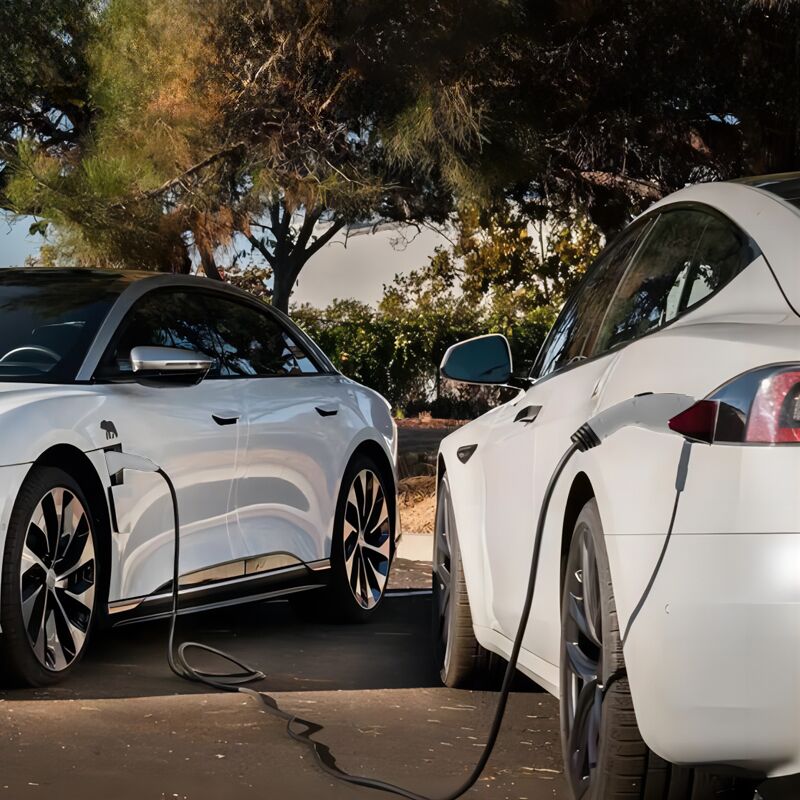

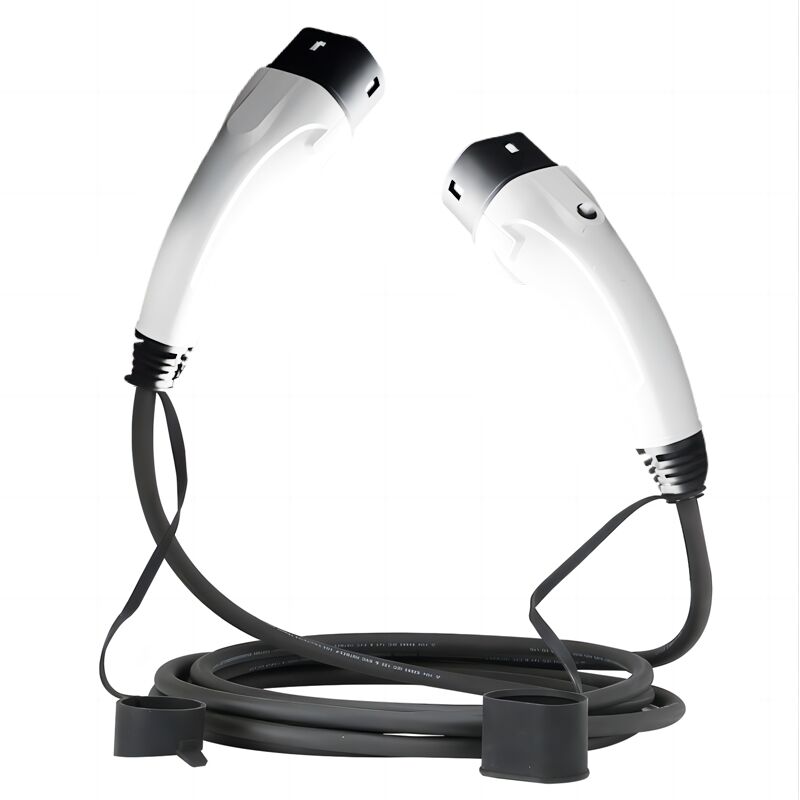

Orientrise Vehicle to Vehicle (V2V) EV Charging Cable

  • Power: 7KW
  • Rated Current: Max 32A
  • Cable Material: TPU
  • Cable Length: 5M or customized
  •  Waterproof Degree: IP 55
  • Warranty: 12 months
  • Certification: CE
  • The resistance value of the discharge vehicle must be 2kΩ / 2.7kΩ (Only for Type2).

Parameters:

Model V2V EV Charging Cable
Charging Power 7kW
Rated Current 32A

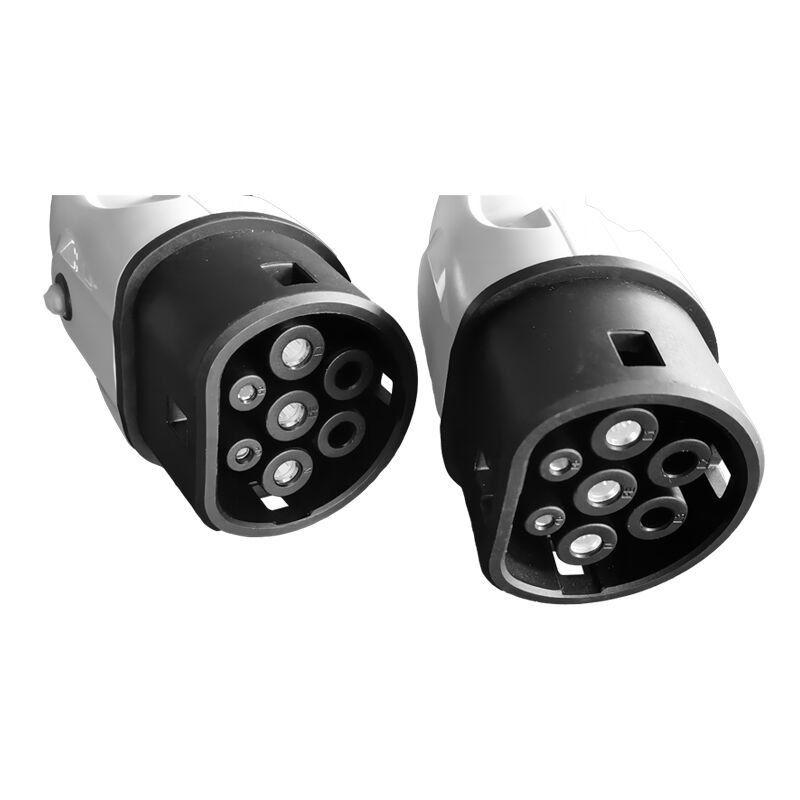

Connector Type1 / Type2 / GB/T
Resistance Value 2kΩ / 2.7kΩ (Only for Type2)
Rated Voltage AC ± 10% 250 V
Cable Length 5M (Customizable Size)
Contact Pin Copper alloy, Silver plated
Cable Material TPU
Insulation Resistance >100MΩ
Terminal Temperature Rise <50K
Ingress Protection IP55
Impact Protection IK10
Working Temperature -30℃~50℃
Certifications CE
External Package Carton
Gross Weight 3kg
