Our Product

EV Discharging Cable

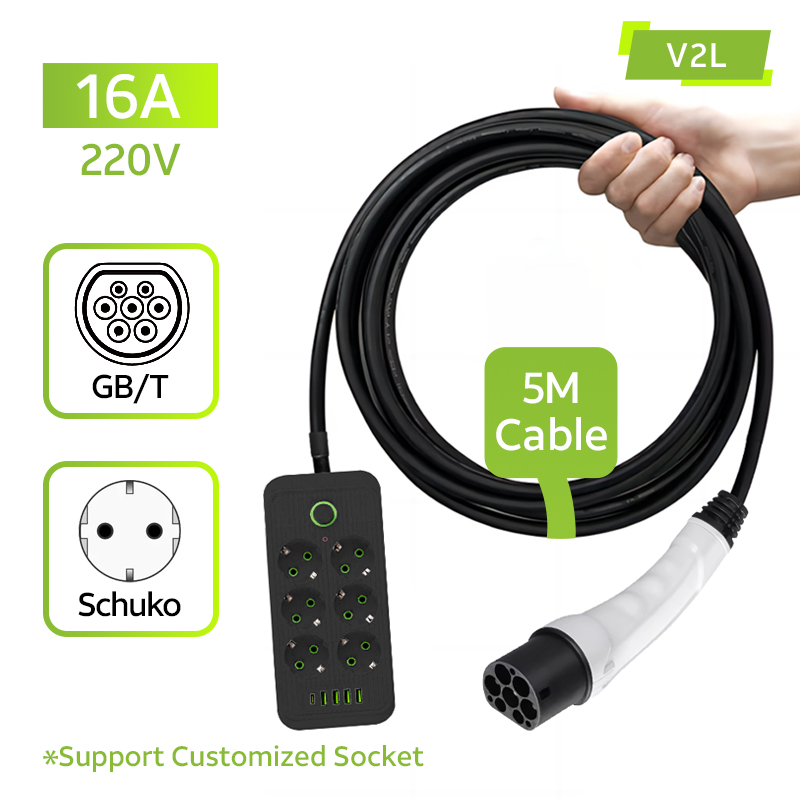

Orientrise Vehicle to Load(V2L) GB/T Discharge Cable with Plug Socket

  • Rated Power: 3.5kW Max
  • Rated Current: 16A
  • Rated Voltage: 250V
  • Plug Socket: British / Schuko (or Customized Socket)
  • Insulation Resistance: >100MΩ
  • Contact Impedancece:0.5mΩ Max
  • Working Temperature: -30~50
  • Degree of Protection: IP55
  • Cable Length: 5M
  • Gross Weight: 1kg
  • Vehicles must have a discharge function.

Parameters:

Model GB/T V2L Discharge Cable with Plug Socket
Rated Power 3.5kW Max
Rated Current Max 16A
Connector GB/T
Rated Voltage 220V
Plug Socket British / Schuko (or Customized Socket)
Contact Impedancece 0.5mΩ Max
Contact Pin Copper alloy, Silver plated
Insulation Resistance >100mΩ
Terminal Temperature Rise <50K
Ingress Protection IP55
Working Temperature -30~50
Cable Length 5M
Certifications CE
External Package Carton
Gross Weight 1kg
