EV Discharging Cable

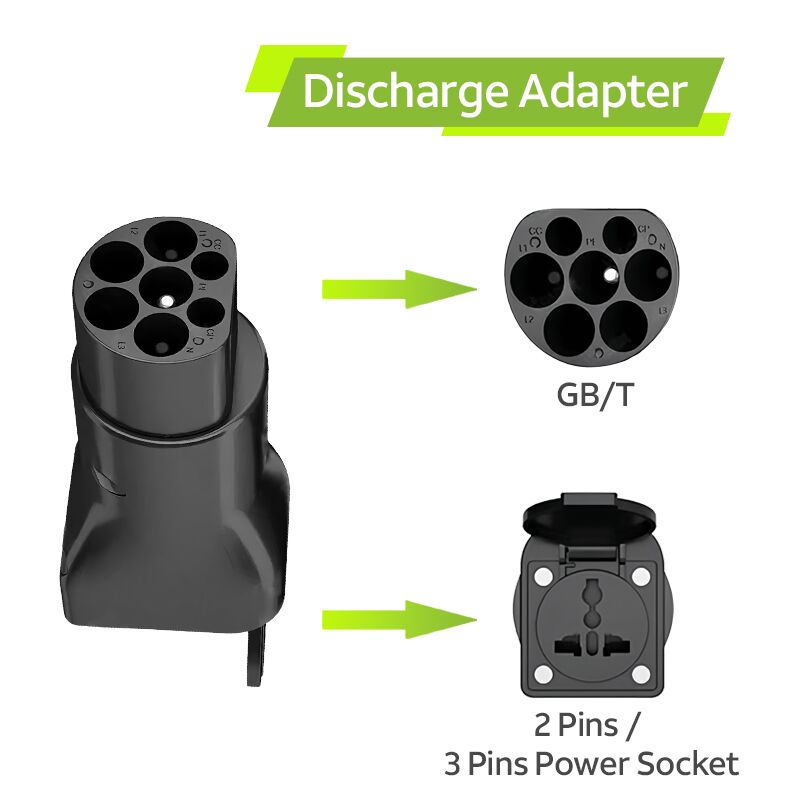

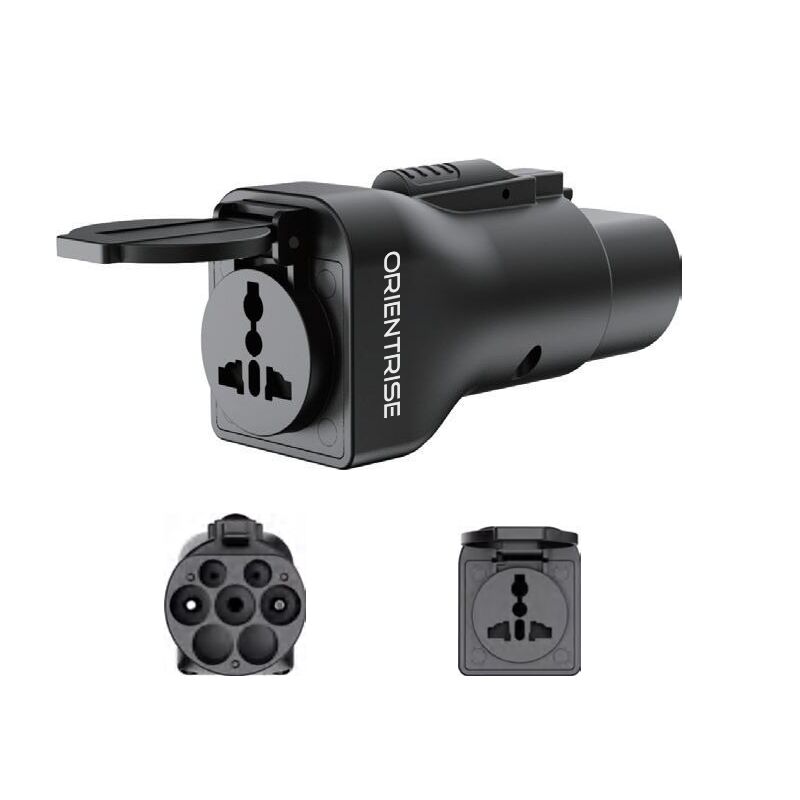

Orientrise Vehicle to Load (V2L) GB/T Discharge Adapter

  • Rated Power: 3.5kW Max
  • Current: 10A-16A
  • Operating Voltage: 220-250V
  • Insulation Resistance: >1000MΩ
  • Contact Resistance: 5mΩ Max
  • Operating Temperature: -40℃~85℃
  • Degree of Protection: IP54
  • Gross Weight: 1kg
  • Vehicles must have a discharge function.
ask for a quote

Parameters:

Model V2L EV Discharge Adapter
Rated Power 3.5kW Max
Current 10A-16A
Connector GB/T
Contact Resistance <5mΩ
Operating Voltage 220-250V
Contact Pin Copper alloy, Silver plated
Insulation Resistance >1000mΩ
Terminal Temperature Rise <50K
Ingress Protection IP54
Working Temperature -40℃~85℃
Certifications FCC
External Package Carton
Gross Weight 1kg
