EV Charging Adapter

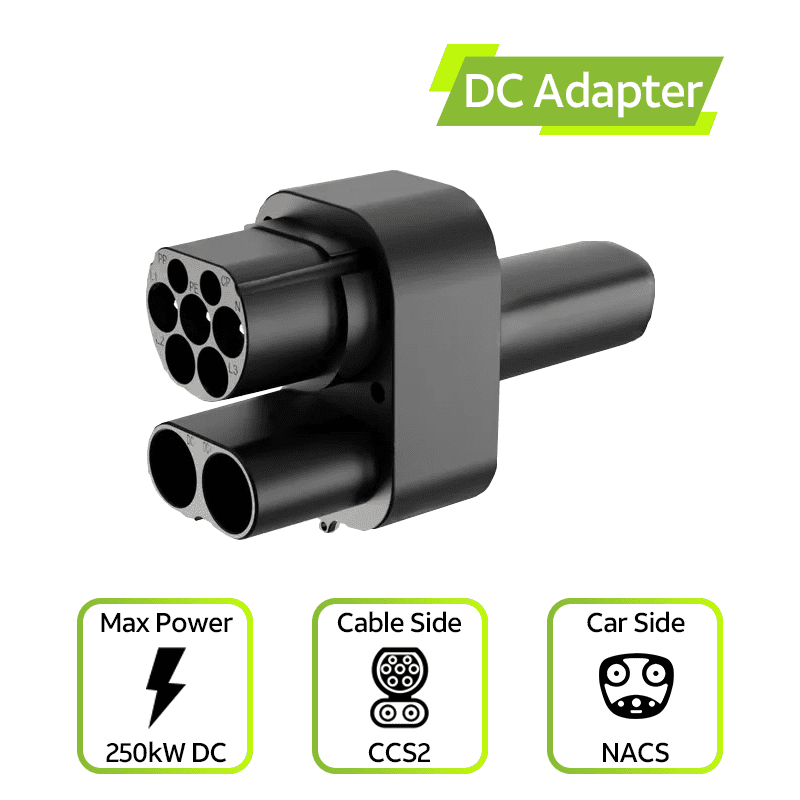

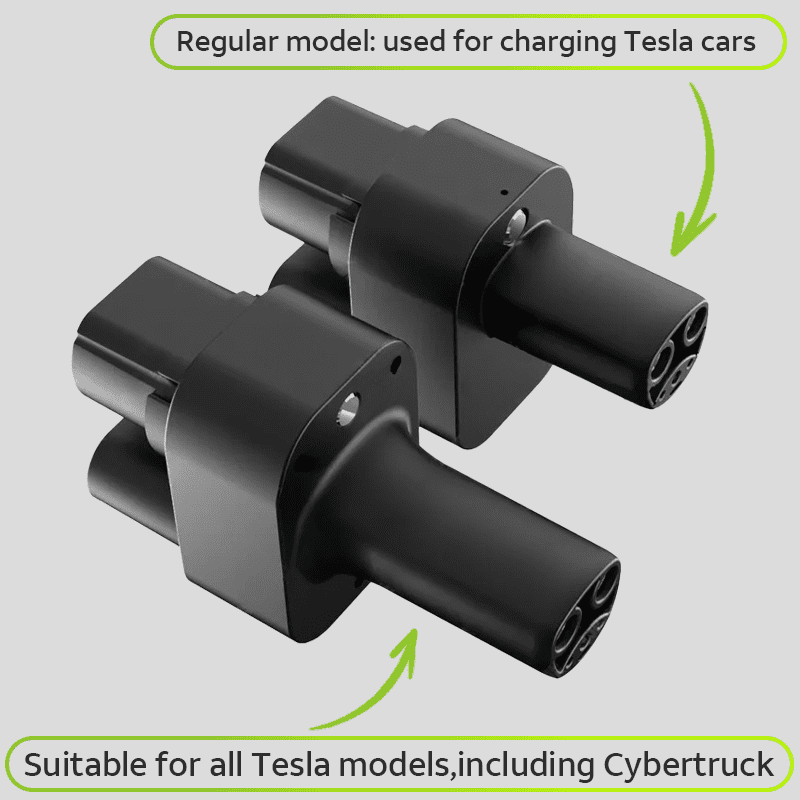

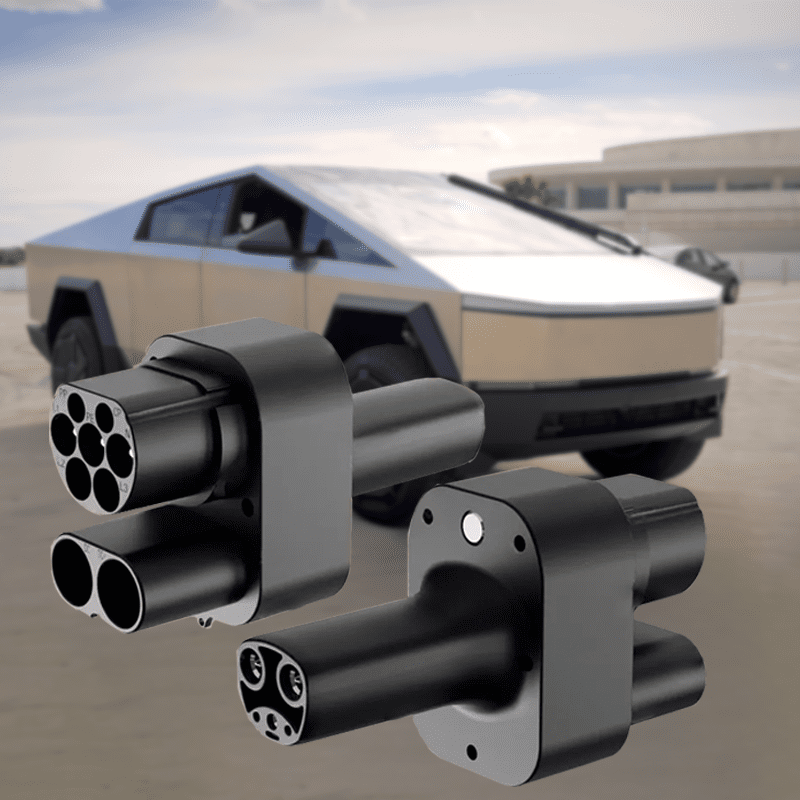

Orientrise CCS2 to NACS EV Charging Adapter for Cybertruck

  • Rated Current: 250A
  • Rated voltage: 1000V DC
  • Insulation Resistance: >1000MΩ
  • Contact Resistance：5mΩ Max
  • Working Temperature: -30℃~50℃
  • Degree of Protection: IP54
  • Gross Weight: 2kg
Bulk Order Inquiry
Sample Order now

Parameters:

Model CCS2-NACS Adapter
Rated Current 250A
Max Current 300A
Rated Voltage 1000V DC
Working Temperature -30℃~50℃
Contact Resistance 5mΩ Max
Insulation Resistance >1000MΩ
Casing Material Thermoplastic Material
Terminal Material Copper Alloy,Silver Plated
Plug Lifespan ＞10000 Mating Cycles
Protection Rating IP54
Flammability Rating UL94V-0
Certification CE
External Package Carton
Gross Weight 2kg
