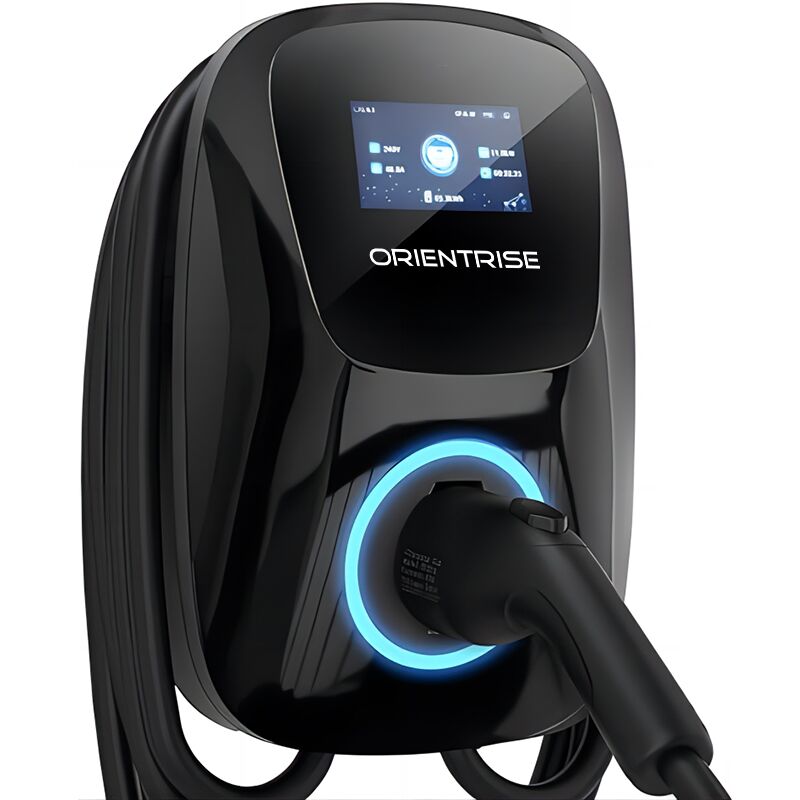

● Max Output Power: 11kW(US) / 22kW(EU)(CN)
● Max Output Current: 48A(US) / 32A(3-Phase)
● Connector: Type1 / Type2 /GB/T
● Color: Black / Silver
● Protection Degree: IP65
● RCD Protection: CCID20(US) / AC30mA+DC6mA(EU) / AC30mA(CN)

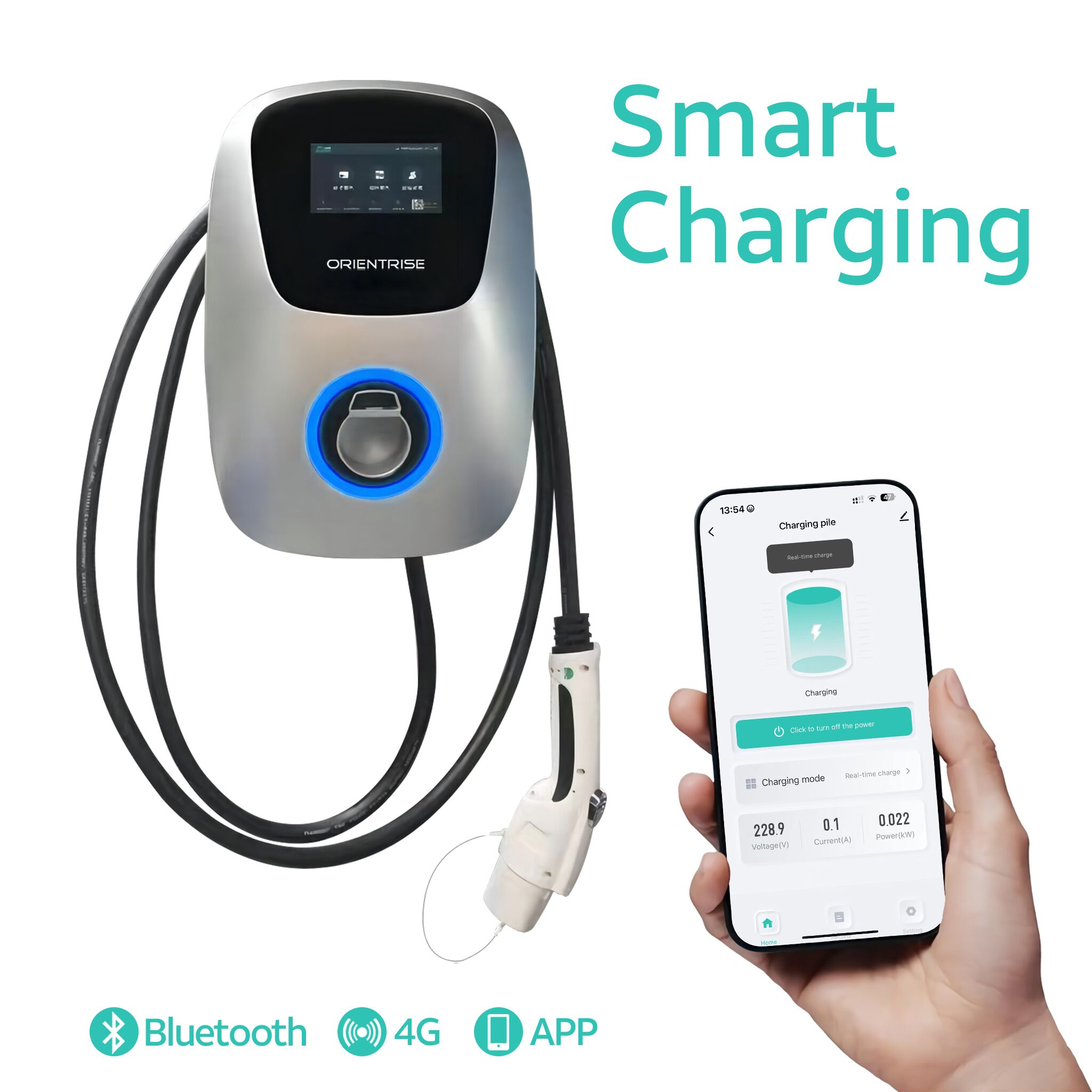

● Charging Method: Plug & Charge / APP
● LCD Screen Size: 4.3Inches
| Model | WBA Series | ||||||||||||||||||||||||||
| Power | 7kW | 9.6kW | 11kW | 22kW | |||||||||||||||||||||||
| Charging Method | Plug & Charge / APP | ||||||||||||||||||||||||||
| Communication Method | Wifi / Bluetooth | ||||||||||||||||||||||||||
| Connector | Type1 / Type2 / GB/T | Type1 | Type1 / Type2 / GB/T | Type2 / GB/T | |||||||||||||||||||||||
| Operating Voltage | AC 240V±15% | AC 230V±10% | AC 220V±20% | AC240V±15% | AC 240V±15% | AC 400V±10% | AC 380V±20% | AC 400V±10% | AC 380V±20% | ||||||||||||||||||
| Operating Current | Max.32A | Max.32A | Max.32A | Max.40A | Max.48A | Max.16A(3-phase) | Max.16A(3-phase) | Max.32A(3-phase) | Max.32A(3-phase) | ||||||||||||||||||
| Leakage Protection | CCID20(US) | AC30mA+DC6mA(EU) | AC30mA(CN) | CCID20 | CCID20(US) | AC30mA+DC6mA(EU) | AC30mA(CN) | AC30mA+DC6mA(EU) | AC30mA(CN) | ||||||||||||||||||
| Screen Size | 4.3Inches | ||||||||||||||||||||||||||
| Current Adjusting | Yes | ||||||||||||||||||||||||||
| Time Setting | Yes | ||||||||||||||||||||||||||
| Time Delay Setting | Yes | ||||||||||||||||||||||||||
| Rated Frequency | 50/60Hz | ||||||||||||||||||||||||||
| Application Scene | Indoor/Outdoor | ||||||||||||||||||||||||||
| Cable Spec | TPU 5m | ||||||||||||||||||||||||||
| Ingress Protection | IP65 | ||||||||||||||||||||||||||
| Installation | Wall-mount/Pole-mount | ||||||||||||||||||||||||||
| Work Temperature | -30~50℃ | ||||||||||||||||||||||||||
| Work Humidity | 5%~95% non condensation | ||||||||||||||||||||||||||
| Maximun Altitude | ＜2000m | ||||||||||||||||||||||||||
| Gross Weight | 7kg | 7kg | 8kg | 8kg | |||||||||||||||||||||||
| Product Dimension | 368mm×256.5mm×130mm | ||||||||||||||||||||||||||
| Package Dimension | 450*400*210mm | ||||||||||||||||||||||||||
| External Package | Carton | ||||||||||||||||||||||||||
1. Fast delivery: 7-10 working days delivery time for normal order.
2. High Quality: 9 protections built in and provide 1 year warranty.
3. Professional: OEM & ODM services can be provided refer to your requirements.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
