● Input Current: Rated 64A, The Max 76A
● Max Output Power: 40kW
● Max Output Current: 133A
● Connector: CCS2 / GB/T
● Protection Degree: IP54
● Charging Method: RFID / APP

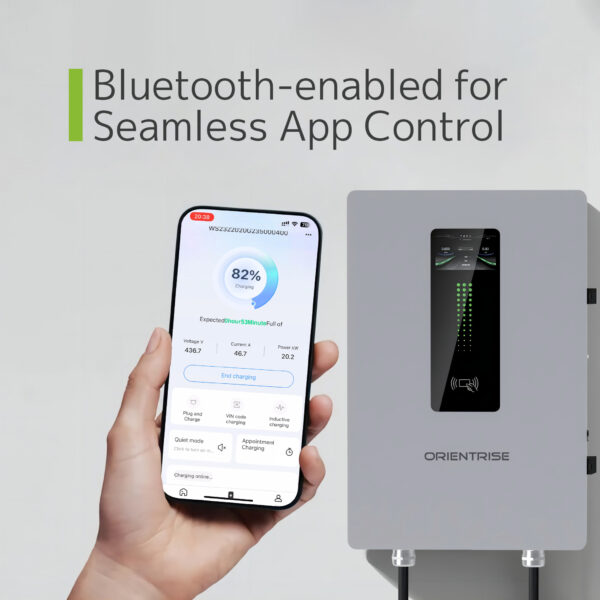

● Communication Method: Bluetooth
● Certification: CE
● Warranty: 1-Year
| Specification | Model | WB-T40 Series |
| Connector and Electrical | Input Current | Rated 64A, The Max 76A |
| Input Voltage | 400V AC | |
| Output Power | 40kW | |
| Output Current | 133A | |
| Output Voltage | 150～750V DC | |
| Charging Cable Length | 5m | |
| Connector Type | CCS2 / GB/T | |
| Performance and Safety | Ingress Protection | IP54 |
| Storage Temperature | -40°C ~ +60°C | |
| Work Humidity | 5%-95% | |
| Certifications | CE | |
| Function | Charging Method | RFID / APP |
| Communication Method | Bluetooth | |
| LCD Display | Yes | |

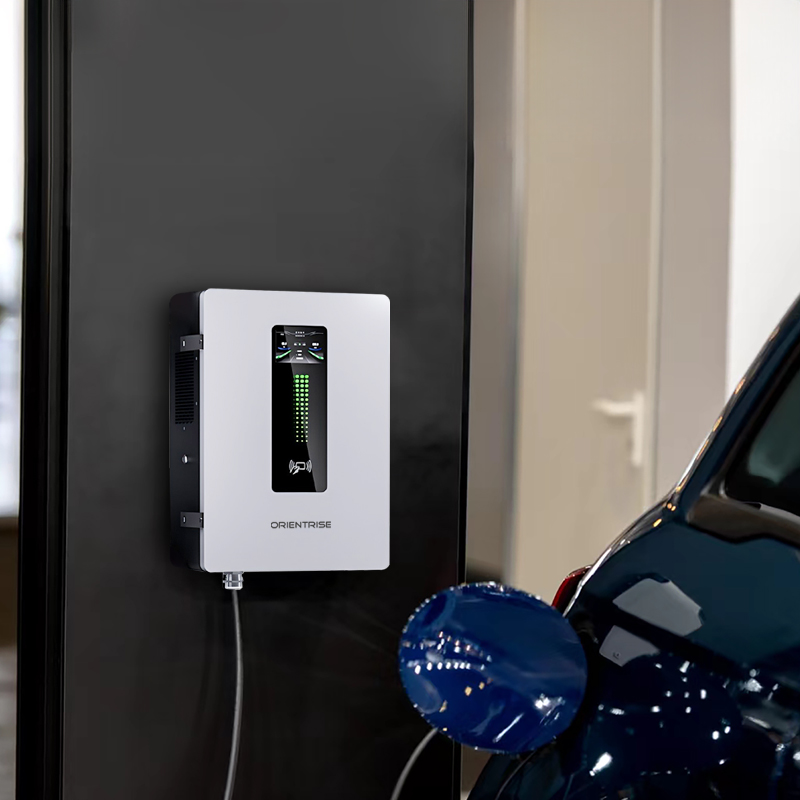

| Install Method | Wall-Mounted / Pile | |
| Size and Weight | Product Size | 730mm*480mm*352mm |
| Gross Weight | 51kg | |
| External Package | Carton |
