High-power options with 11kW and 22kW ratings accelerate charging times
Adaptable charging options with current adjusting, time setting, and delay setting functionalities
Comprehensive safety protections paired with superior IP65 waterproofing ensure reliable operation
Lightweight, flexible TPU cables make handling and transportation easy
Strong compatibility supports a wide array of vehicle models, maximizing usability
| Specification | Model | M2E Series |
| Connector and Electrical | Rated Voltage AC± 10% | 220V / 380V |
| Terminal Connection | CEE16A / CEE32A | |
| AC Power Output Rating | 11kW / 22kW | |
| AC Power Output Current | 16A / 32A Three Phase | |
| Power Wiring | 3 Wire – L1, PE, N | |
| Charging Cable Length | 5m | |

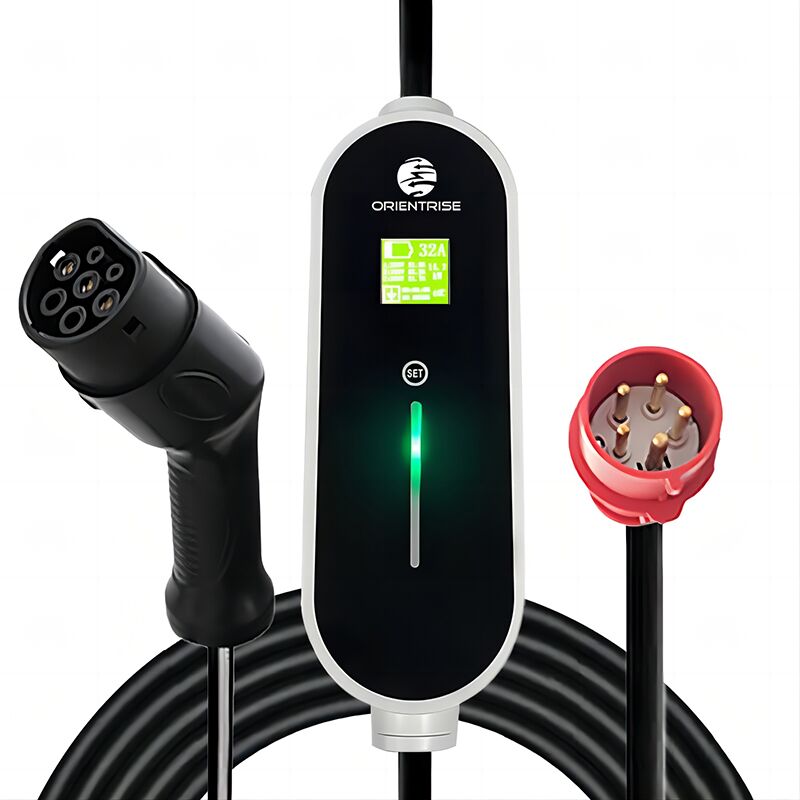

| Connector Type | IEC 62196-2 | |
| Performance and Safety | Plug-Out Detection | Power terminated per IEC 62196-2 specifications |
| Ingress Protection | IP65 | |
| Electrical Protection | Leakage protection / Over-voltage protection / Under-Voltage protection / Over load protection / Ground protection / Over Temp Protection | |
| RCD type | Type A / Type B DC 6mA Optional | |
| Cable Material | TPU | |
| Operating Temperature | -25°C ~ +50°C | |
| Operating Humidity | Up to 95% at 50°C (122°F) non-condensing | |
| Certifications | CE / TUV | |
| Function | Charging Method | Plug & Charge |

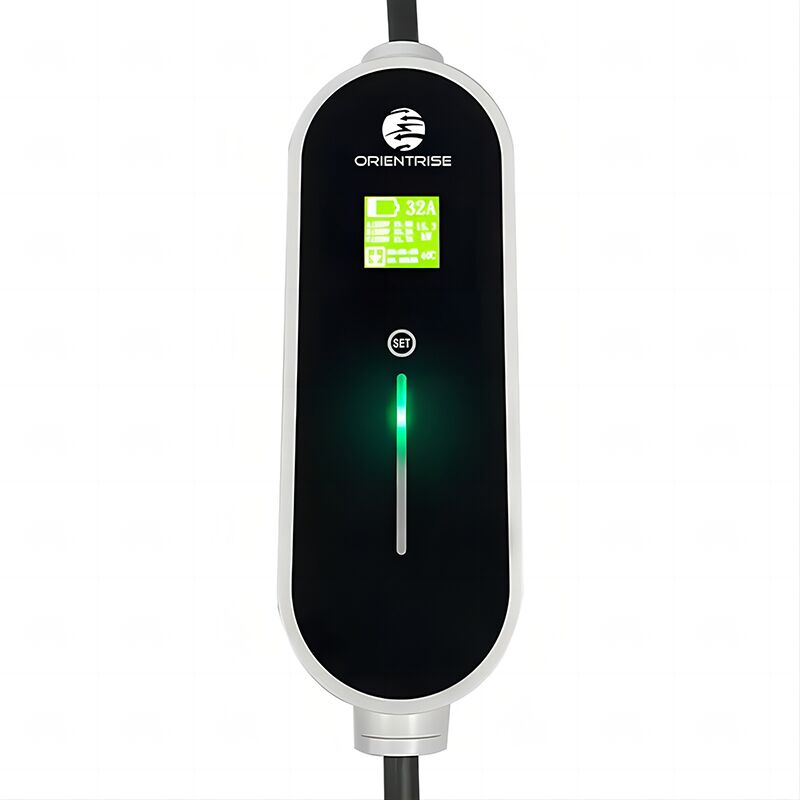

| LCD Display | Yes | |
| Current Adjusting | Yes | |
| Time Setting | Yes | |
| Time Delay Setting | Yes | |
| Package | External Package | Carton |
| Package Dimension | 40*40*8cm | |
| Gross Weight | 5kg |
