EV Charging Adapter

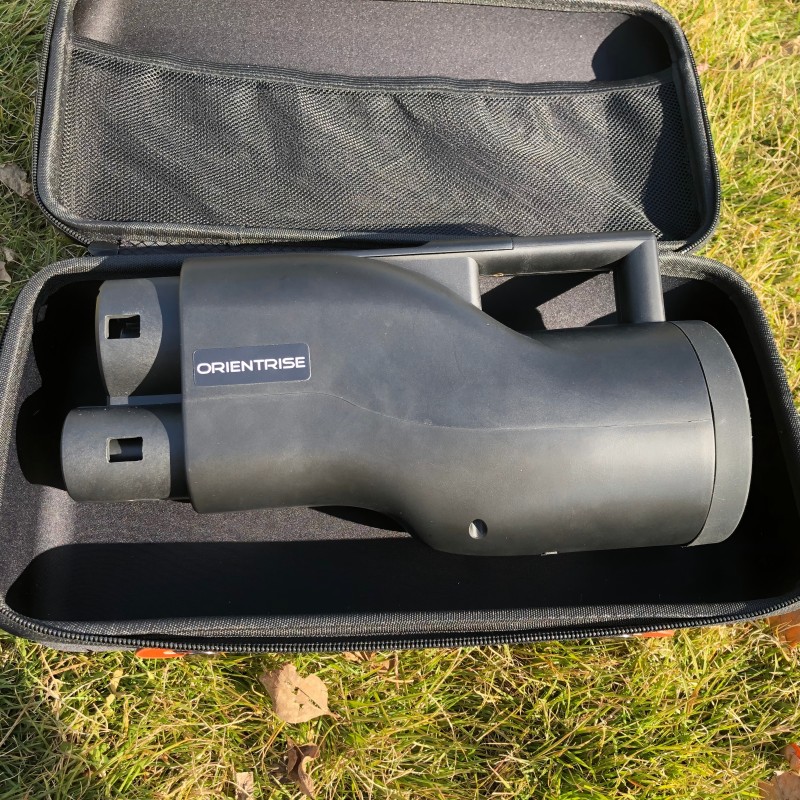

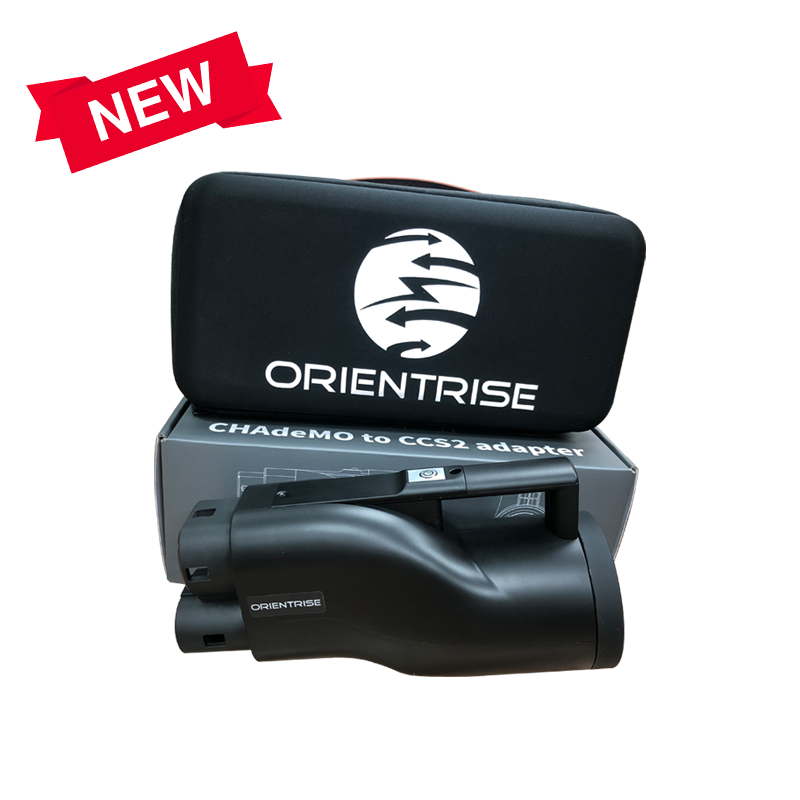

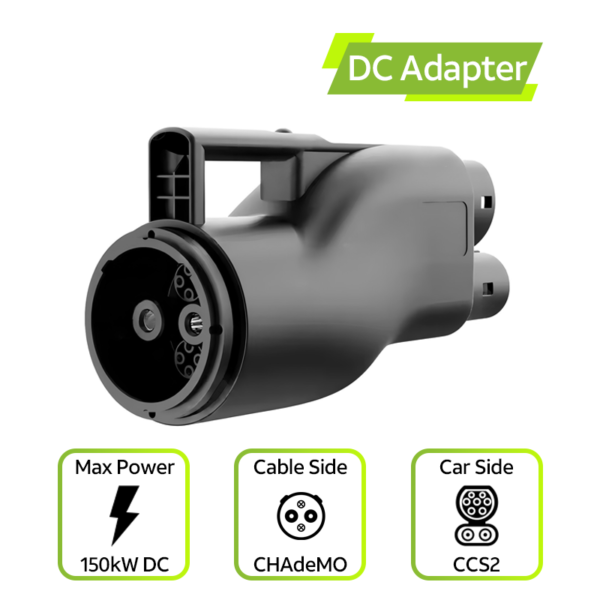

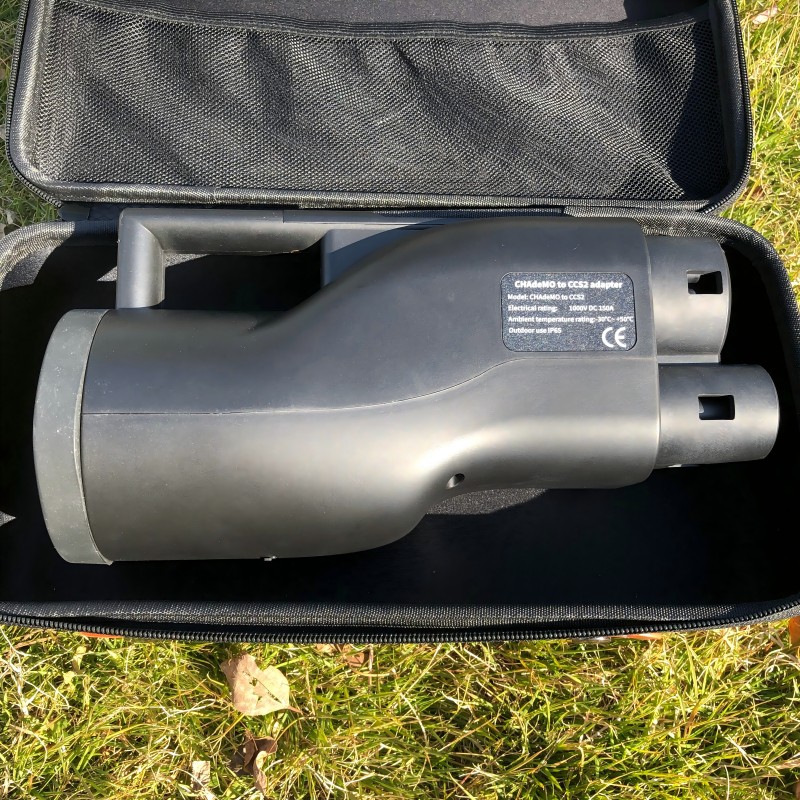

Orientrise CHAdeMO to CCS2 EV Charging Adapter

  • Rated Current: 150A
  • Rated voltage: 1000V DC
  • Insulation Resistance: >100MΩ
  • Contact Resistance:0.5mΩ Max
  • Operating Temperature: -30~50
  • Degree of Protection: IP54
  • Gross Weight: 3kg

Parameters:

Model CHAdeMO-CCS2 Adapter
Rated Current 150A
Rated Power 150kW Max
Rated Voltage 1000V DC
Operating Temperature -30~50
Contact Resistance 0.5mΩ Max
Insulation Resistance >100MΩ
Casing Material Thermoplastic Material
Terminal Material Copper Alloy,Silver Plated
Plug Lifespan 10000 Mating Cycles
Protection Rating IP54
Flammability Rating UL94V-0
Certification CE
External Package Carton
Gross Weight 3kg
