CCS2 to NACS Adapter for Tesla | Charge at CCS2 Stations

EV Charging Adapter

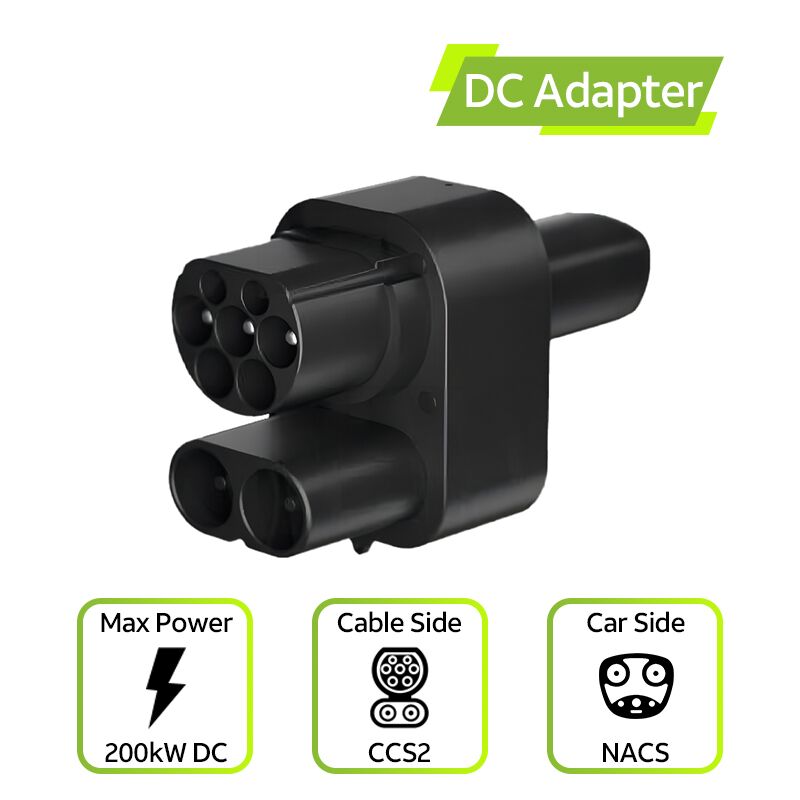

Orientrise CCS2 to NACS EV Charging Adapter

Rated Current: 200A
Rated voltage: 1000V DC
Features: AC+DC in One
Insulation Resistance: >1000MΩ
Contact Resistance：5mΩ Max
Operating Temperature: -40℃~85℃
Degree of Protection: IP54
Gross Weight: 2kg

Parameters:

Model	CCS2- NACS Adapter (AC+DC)
Rated Current	200A
Rated Power	200kW Max
Rated Voltage	1000V DC
Features	AC+DC in One
Storage Temperature	-30℃~50℃
Contact Resistance	5mΩ Max
Insulation Resistance	>1000MΩ
Casing Material	Thermoplastic Material
Terminal Material	Copper Alloy,Silver Plated
Plug Lifespan	＞10000 Mating Cycles
Protection Rating	IP54
Flammability Rating	UL94V-0
Certification	CE
External Package	Carton
Gross Weight	2kg
